The problem with run length encoding was that our chunk size (e.g. 4 bits) is fixed. This is nonoptimal.
With Huffman encoding, we can have variable length sequences to represent each character. However, we need a prefix free encoding. What this means is that if we represent A with 11, and D with 110, and F with 01, T with 0, we have an ambiguity. If we encounter a 1101, is this AF, or DT? A prefix free encoding ensures such an ambiguity cannot arise.
We can represent any prefix free encoding with a binary trie. All the characters are stored in leaves. The left branch represents a 0, and the right represents a 1.

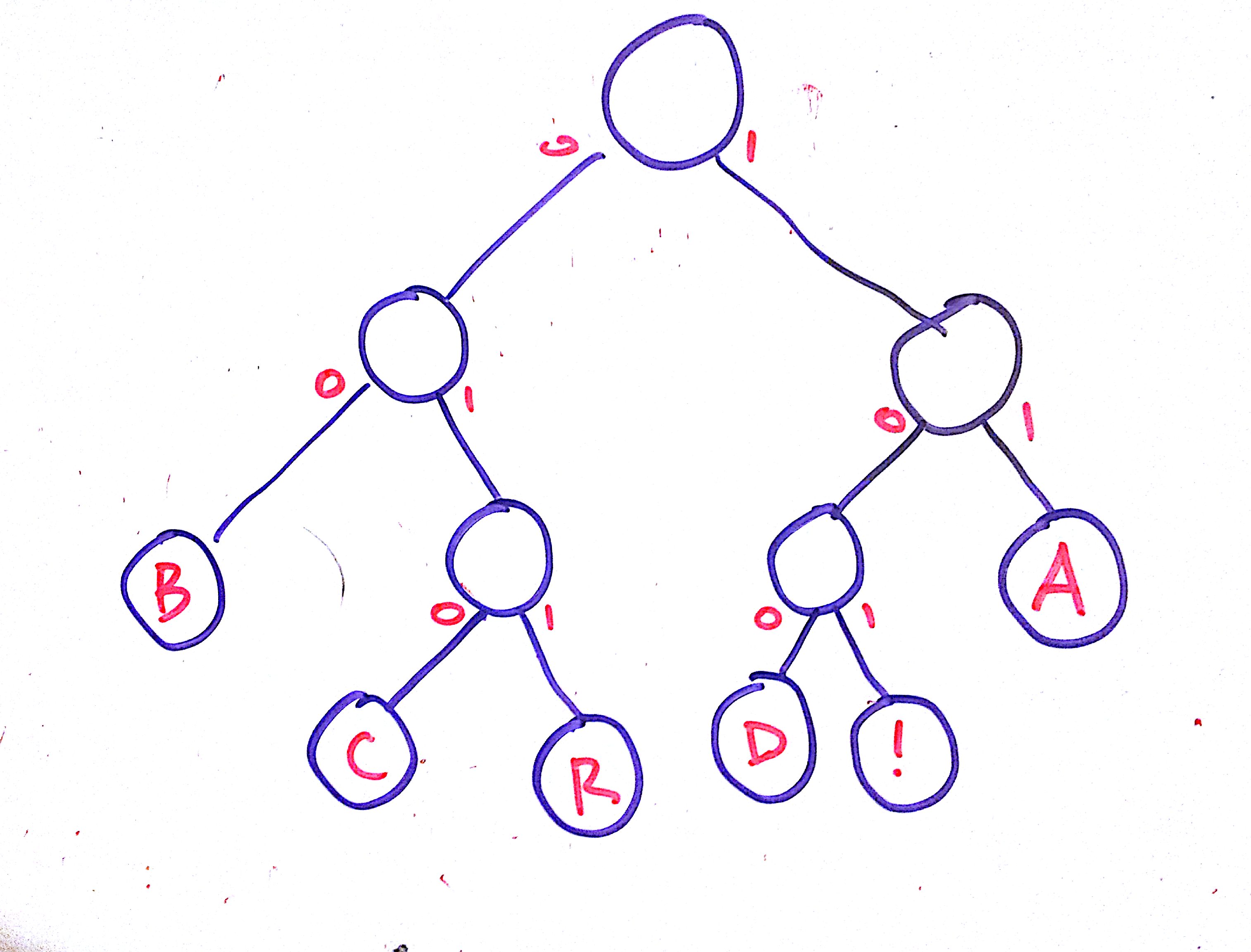

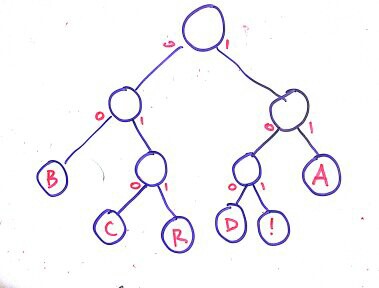

As an example:
So while decoding, if we encounter a 011, we know this represents R.
This trie is created for all letters/symbols of the alphabet.
This is for decoding. How do you encode? A simple way is to create a symbol table with all your letters, with the values being the bit strings.
Again, note that for a given character, the size of the bitstring is variable.
Constructing the Prefix Free Encoding
- Scan through the whole text and note down the frequency counts for each character.
- Construct a node for each character: Make each of them a single-node trie. Give them a weight equal to the frequency.
- Select the two tries with minimum weights, and merge them to form a single trie with weight the sum of the two tries. By merging, I mean form a new root node, and put one trie as its left child, and the other trie as its right child.
- Recurse till you have only one trie.
Properties
- The text encoded by each bitstring is of fixed length.
- The bit string used to encode a piece of text (usually a single character) is of variable length.
- The cost to build this encoding is \(N+R\log R\) where \(R\) is the alphabet size.
- The compression is optimal (for single character encodings).
- You need the whole text before you begin encoding, so it’s not a good
idea for live communications.
- However, if we use the algorithm primarily to encode English text, we could just use a well known trie that utilizes the expected frequency counts of each letter.
- Need to communicate the prefix encoding. It is different for each text you compress, and the decompression side needs the trie you used to encode it.
